| HK$4800 Ceiling System-B-3030C |
|---|
Basic information:
Features:
- Ceiling Tracking System
- Fully utilize the space in the studio
- With 4 pantographs |

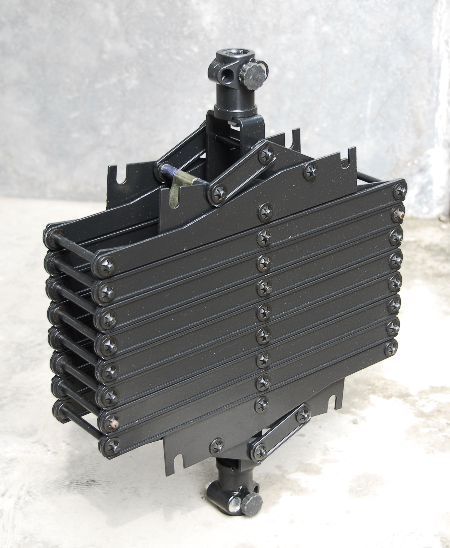

伸縮儀各項技術
*安全負荷：1-15KG
*自重：4.5KG
*上下連接套：內孔直徑16mm(5/8'')
*壓低時尺寸：330x98x395mm
*伸縮范圍：395~2030mm
天花路軌零件
|
名稱 / Name
|
編號 / Number
|
數量 / Quantity
|
備註 / Remarks
|
| 3030C |
|
| 3m 路軌 / track |
3310 |
4 |
|
| 5m 路軌 / track |
3510 |
- |
|
| 伸縮儀 / extension instrument |
3320 |
4 |
|
|
| 路軌滑輪 / track moving wheels |
3330 |
4 |
附16mm直徑管接口 / with 16mm tube fitting |
| 3331 |
2 |
雙層 / two tiers |
| 3332 |
2 |
雙層附剎車 / 2 tiers with brake |
| 路軌固定板 / track fix boards |
3340 |
6 |
每套含M6x14螺栓螺母2副 / Each set with 2 size of M6X14 screws |
| 電線扣子 / fasteners |
3350 |
51 |
|
| 扣子滑輪 / button moving wheels |
3360 |
15 |
|
| 3361 |
12 |
附M6x55螺栓螺母和墊片 / with M6x55 screws & spacer |
| 閃燈配用螺杆 / lamp screws |
3370 |
4 |
雙頭M1/4"和M3/8" / two heads M1/4 & 3/8, copper |
| 保險鋼纜 / safety rings |
3380 |
3 |
|
| 調節手杆 / adjusting handstaffs |
3390 |
2 |
|
| 伸縮吊杆 / flexible staff |
3520 |
/ |
/ |
|
| | Product number:B-3030C |
|
   |
|
|
|
| Technical Specifications |
Optional Accessories |
Manuals |
Kit Set |
Video |
| Model no. |
B-3030C |
| Pantograph |
4 pieces |
| Track (4m) |
4 pieces |
| Extendable Rod |
/ |
| |
|
| Accessories Included |
3310(C) Track x4pcs
3330(C) Track Fixing Plate x8pcs
3340(C) Double Tier Runner x4pcs
3350(C) Rail Stopper x12pcs
3360(C) Pantograph x4pcs
3370(C) Cable Runner x8pcs
3380(C) Cable Fastener x40pcs
3390(C) Safety Steel Wire x4pcs
3312(C) Spigot for Holding the Lamps/Flashes x4pcs
3313(C) Track Runner x4pcs
|
|
|
|
|
|
|
|
|
|
|
|
|
